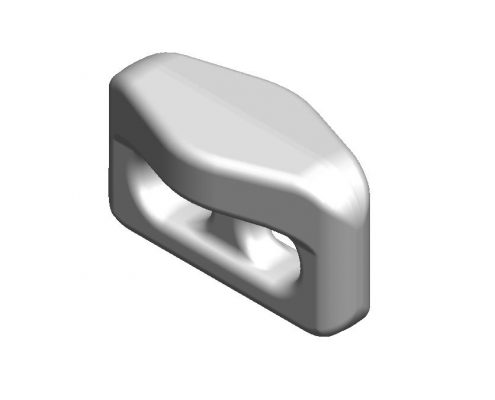

X14 UNIVERSAL

Specification

PRODUCT FEATURES

Link Dimensions (WxHxL) :  36x44x76 mm
Mesh Opening : 63 mm
Applications : Tunnels, Recycling, and Scrap Industry
Tyre Sizes : 17.5-25, 16.9-28, 20.5-25, 23.5-25, 26.5-25

Developed for small and medium-sized machines, this lightweight yet wide-surfaced link structure prevents your tires from being damaged by external factors. With its high service life, it is a suitable option for tunnel and scrap yard working environments.

WHEN SHOULD X14 UNIVERSAL BE USED?

Our X14 UNIVERSAL model is an improved version of the X12 UNIVERSAL model. If you are looking for a superior price-performance product, the X14 UNIVERSAL is the model you need. While the primary focus and preference for X12 UNIVERSAL is underground mining, the X14 UNIVERSAL model is also designed to work in slag-related environments. In principle, both forging models are similar, but in addition to underground mining, you can use the X14 UNIVERSAL model in scrap, recycling, and slag sites.

WILL IT HELP ME SAVE MONEY?

One of the biggest complaints of hot slag site operators is the frequent need to change tires. The main reason for this is working in hot slag without protective chains. Tires are not resistant to extreme heat—especially when considering temperatures exceeding 500°C, you can imagine the challenging conditions.

X14 UNIVERSAL – A FLAWLESS DESIGN

Thanks to its wide and flat design, it provides complete protection for your tires. While its inner structure firmly grips the tires, the outer surface thickness and steel hardness keep your tires as far from the ground as possible. It will pave the way for your tires on soil, muddy terrain, metal and scrap piles, and even harder surfaces.

IS X14 UNIVERSAL COMPATIBLE WITH MY MACHINE?

This model is compatible with all machines that have the following tire sizes:

  • 16.9-28
  • 17.5-25
  • 20.5-25
  • 23.5-25
  • 26.5-25

For a more precise model selection, our experienced representatives are available 24/7 to assist you.

DOES THE X14 UNIVERSAL MODEL PROVIDE FULL PROTECTION FOR MY TIRES?

Yes. The biggest concern for users working in environments with sharp, piercing, and cutting materials is that even if the center of the tire is protected, the tire may still sustain damage from sidewall impacts. Thanks to our years of experience, R&D efforts, and engineering expertise, we have developed solutions for this issue. With our full-protection chain models covering the entire tire, including inner and outer sidewall protection, we offer you maximum safety.
